Overheated screw air compressor

Wednesday - 02/01/2019 03:14

Screw air compressor is overheated

Due to friction and compression pressure, the compressed air temperature of screw air compressor is maintained at  65ºC - 90ºC. However, after  period of use, the compressed air temperature can be up to 95ºC - 110ºC and  even higher, causing the machine to stop working. Users should pay attention to this to have an early fix. The cause may be due to one or more of the following factors:

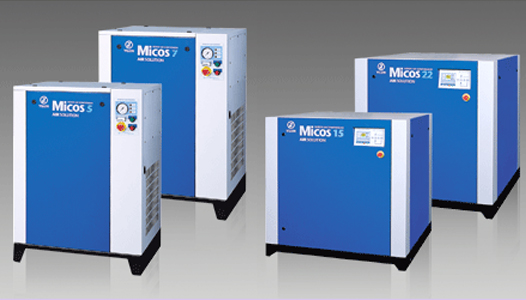

may nen khi truc vit micos
air compressor




CAUSES

SYNSTOMS

REMEDIES

-Dirty compressor oil :

+ Machine operates in long timwe without oil replacement, dirty oil decrease heat dissipation capability

+Poor quality  or  incorrect type of oil.

+Oil level is too low

 + Oil is black and muddy + New oil has changed color abnormally even though the machine runs in a short time. Oil is bubbling.



 + Replace new oil. When replacing the oil, you must make sure that the old oil is removed (in the oil case, oil filter, cooling system and air end)
+ New oil must be specialized oil of screw air compressor.


Lack of oil: + The amount of oil enough for operation of the machine is within 2 red lines of oil level gauge when the machine is operating + The amount of oil is lower than the bottom line

+Replenish  more oil

Oil cooling fan is broken

 The cooling fan is broken, not rotating or weakly rotating Replace or repair
The cooling system is clogged or the oil circulation is blocked,

The temperature difference between the two oil circulation poles is low.

 Remove the cooling platform and use a specialized solution (eg Butin) to clear.

Suction throtte valve and temperature control valve is broken

 Check if the oil is cooled when going through the cooler Check oil suction throtte valve And repair or replace the temperature control valve if nescessary.

Oil filter is clogged

 The pressure difference between the two inlet and outlet outlets of the oil filter is high.

Replace oil filter

Cooling fan is broken

It doens't spin or weakly spin

 Repair or replace cooling fans and electric motors
Mechanical collision: + Bearings are worn, broken balls + not concentric + Screw or mirror surface is deformed

Abnomal noise .

Replace and recalibrate .
Check screw, mirror surface

Ambient temperature is too high

measure the ambient temperature
Improve ventilation and reduce room temperature
The side cooler is clogged





Clear it

Failure of thermal  sensor is  signaling to the instrument panel incorrectly.


Unstable temperature

Check and replace thermal  sensor



Related article : High temperature error of Komatsu portable air compressor,   Finding  out the cause of air compressor error - Part 1, Find out the cause of air compressor error - Part 2,  Hitachi compressor repair, Air swan compressor , Handsome screw Kobelco air compressor fault,




Minh Phu provides maintenance and repair services for air compressors, in addition Minh Phu also provides spare parts for air compressors with high quality at reasonable prices. For further information, please contact (+84)919 23 28 26. Sincerely thank you for your interest and your trust of our service. máy nén khí micos,lỗi nhiệt độ cao máy nén khí trục vít,nguyên nhân nhậ biêt khắc phục lỗi nhiệt dộ cao máy nén khí trục vít
