Mann Filter parts for air compressor

Monday - 24/12/2018 23:04
1. Mann Filter Compressed air-oil separation

loc tach dau mann filter
tach dau mann filter lb 13145 3 3
tach dau may nen khi

Oil separator 4930253131

Largest OD     (A): 170 mm
Flange OD      (D): 200 mm
Overall Height (H): 305 mm
Nominal flow rate:8.9m³/min

Oil separator LB 13145/3

Largest OD  (A): 136 mm
Seal ID        (B): 100  mm
Seal OD      (C): 111 mm
Overall Height (H): 302 mm
Thread Size (G):M 39 x 1.5

Oil separator LB 1374/2

Largest OD   (A): 136 mm
Seal ID          (B): 100 mm
Seal OD        (C): 111 mm
Overall Height (H):177 mm
Thread Size (G):M 39 x 1.5

tach dau mann filter lb 13145 3
tach dau mann filter lb 13145-3
tach dau mann filter lb 13145 3 1

Oil separator LB 11102/2

Largest OD (A): 108 mm
Seal ID       (B):  93  mm
Seal OD      (C): 104 mm
Overall Height (H):260 mm
Thread Size (G):M 32 x 1.5

Oil separator LB 962/2

Largest OD    (A): 93 mm
Seal ID           (B): 62 mm
Seal OD         (C): 71 mm
Overall Height (H): 212 mm
Thread Size (G):M 24 x 1.5

Oil separator LB 719/2

Largest OD (A): 76 mm
Seal ID        (B): 62 mm
Seal OD       (C): 71 mm
Overall Height (H):127 mm
Thread Size (G):M 22 x 1.5


2. Oil Filter

loc dau mann filter w719
loc dau mann wd 13 145
loc dau mann filter wd1374

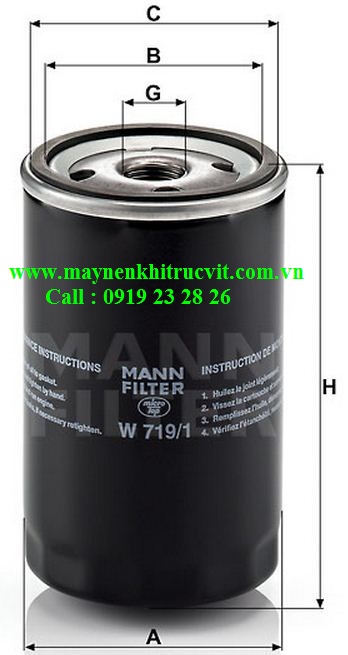

Mann  oil filter W719

Largest OD   (A):  76 mm
Seal ID          (B):  62 mm
Seal OD        (C):  71 mm
Overall Height (H): 123 mm
Thread Size  (G): 3/4-16 UNF

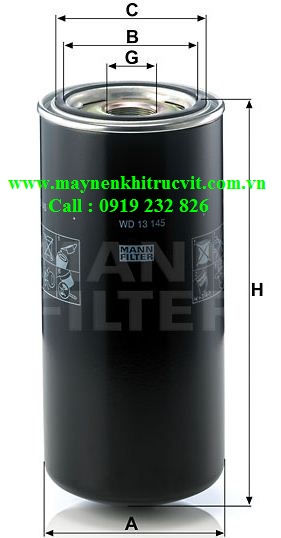

 Mann oil filter  WD13145

Largest OD   (A): 136 mm
Seal ID          (B): 100 mm
Seal OD        (C): 111 mm
Overall Height (H): 302 mm
Thread Size(G):1 1/2-16 UN

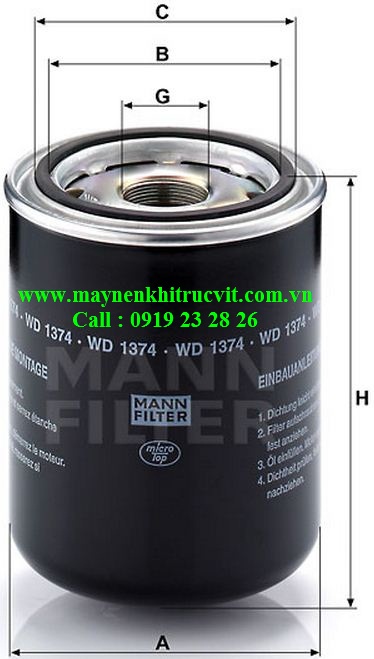

 Mann oil filter  WD1374

Largest OD   (A): 136 mm
Seal ID          (B): 100 mm
Seal OD        (C): 111 mm
Overall Height (H): 177 mm
Thread Size(G):1 1/2-16 UN

loc dau mann filter wd1374
loc dau mann filter w11102
loc dau mann filter wd940

 Mann oil filter W962

Largest OD     (A):  93 mm
Seal ID            (B):  62 mm
Seal OD          (C):  71 mm
Overall Height (H): 210 mm
Thread Size  (G): 1-12 UNF

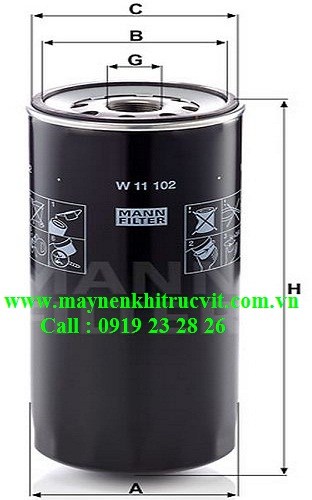

 Mann oil filter W11102

Largest OD     (A): 108 mm
Seal ID            (B):  93 mm
Seal OD          (C): 104 mm
Overall Height (H):260 mm
Thread Size(G):11/8-16 UN

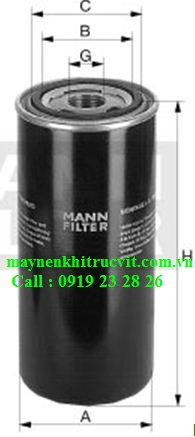

 Mann oil filter  WD940

Largest OD     (A):  93 mm
Seal ID            (B):  62 mm
Seal OD          (C):  71 mm
Overall Height (H): 144 mm
Thread Size(G): 3/4-16 UN


 3. Air Filter

loc gio mann c1250
loc gio mann c1450
loc gio mann c16400 1

Mann C1250 oil filter

 OD (A)                   :118mm
 ID (B)                     : 67mm
 Overall Height (H) :134mm

 Mann C1450 air filter

OD  (A)                : 140 mm
ID   (B)                 :  79 mm
Overall Height (H):123 mm

Mann C20500 oil filter

OD  (A)                : 194 mm
ID   (B)                 : 114 mm
Overall Height (H) : 400 mm
loc gio mann c16400
loc gio mann filter c26980
loc gio mann c25860

Mann C16400 oil filter

OD  (A)                : 159 mm
ID   (B)                 :   94 mm
Overall Height (H) : 375 mm

Mann C26980 oil filter

OD  (A)                : 251 mm
ID   (B)                 : 170 mm
Overall Height (H) : 480 mm

 Mann C25860 oil filter

OD  (A)                : 243 mm
ID   (B)                 : 130 mm
Overall Height (H)  : 420 mm
loc mann filter c281440
loc gio mann filter c14200
loc gio mann c16400 2

 Mann C281440 air filter

OD  (A)                : 281 mm
ID   (B)                 : 200 mm
Overall Height (H) : 628 mm

 Mann C14200 air filter

OD  (A)                : 124 mm
ID   (B)                 :   74 mm
Overall Height (H) : 320 mm

      Mann C15300 air filter

OD  (A)                : 149 mm
ID   (B)                 :   84 mm
Overall Height (H) : 360 mm
